Valentini 'ER' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath - No Belts, NO Chains
& Double Skinned Body, All For Long, Trouble Free Life!

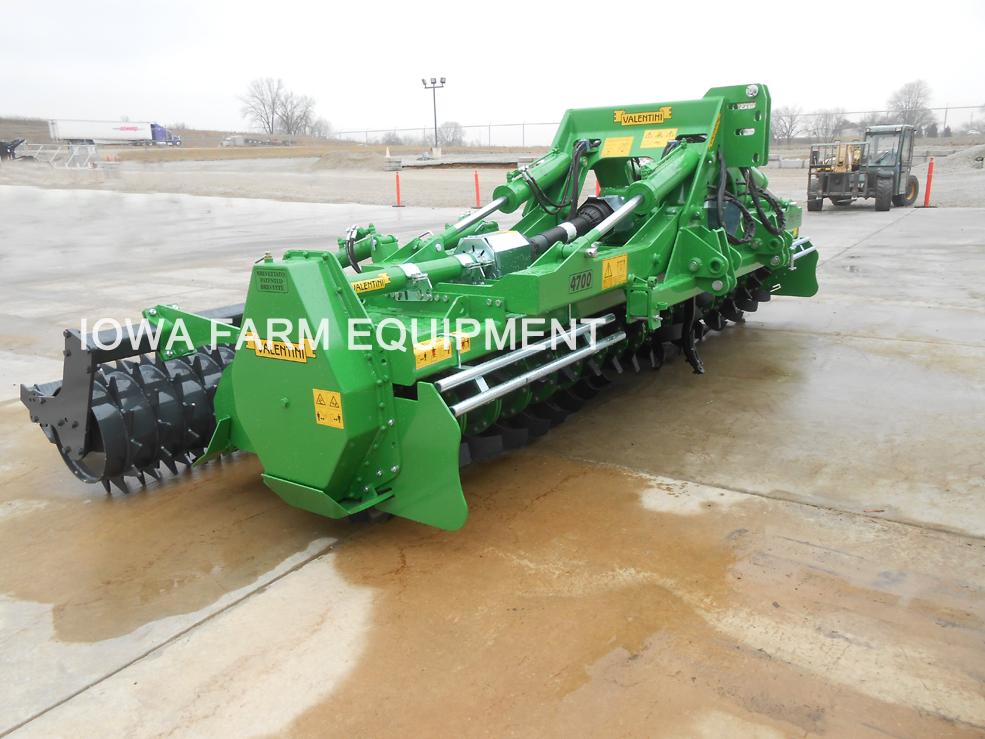

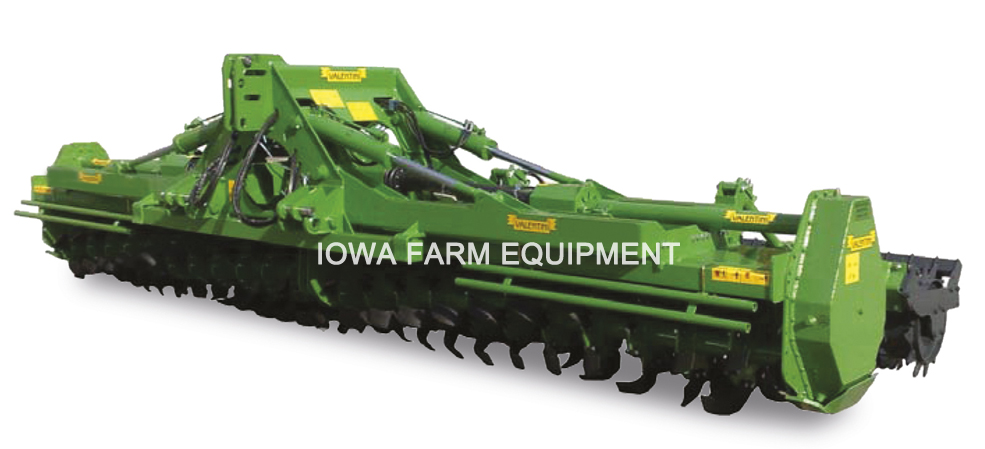

'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller

FOR 180-400HP TRACTORS

As with ALL Valentini Rotary Tillers, the 'ER' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!

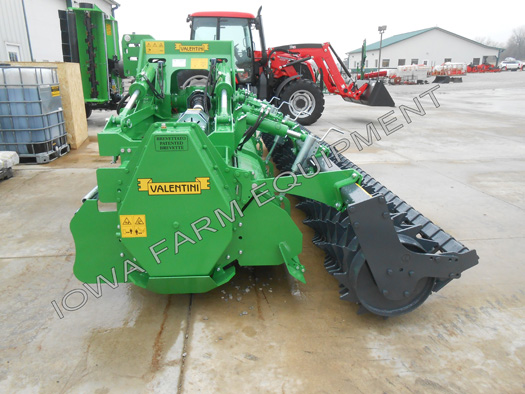

'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller

STANDARD FEATURES:

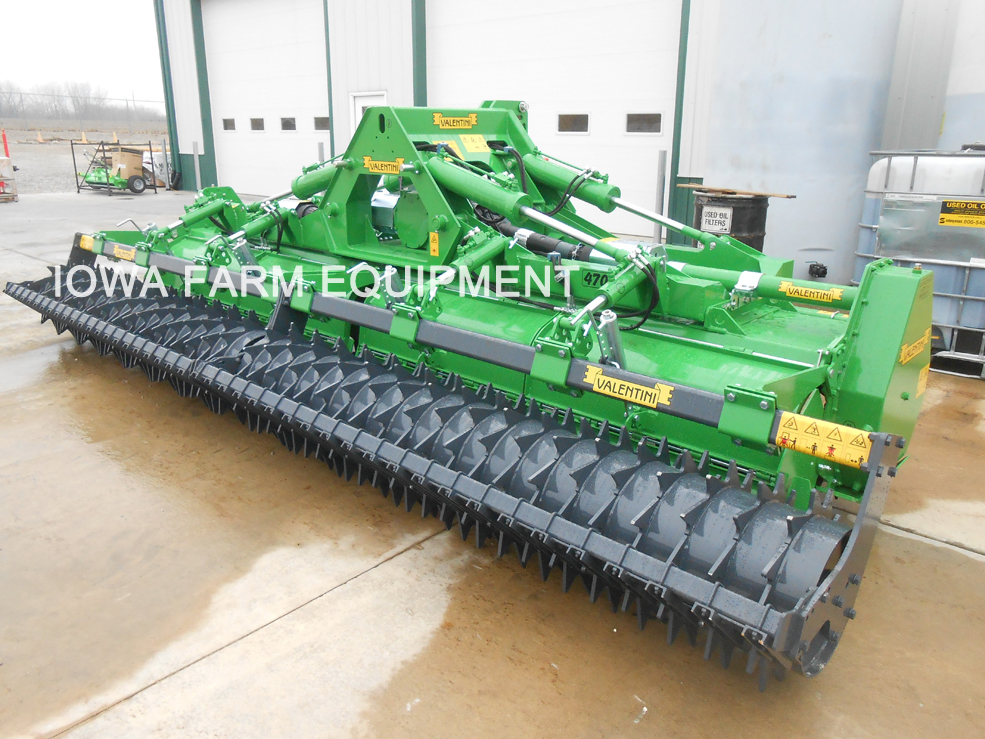

'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller

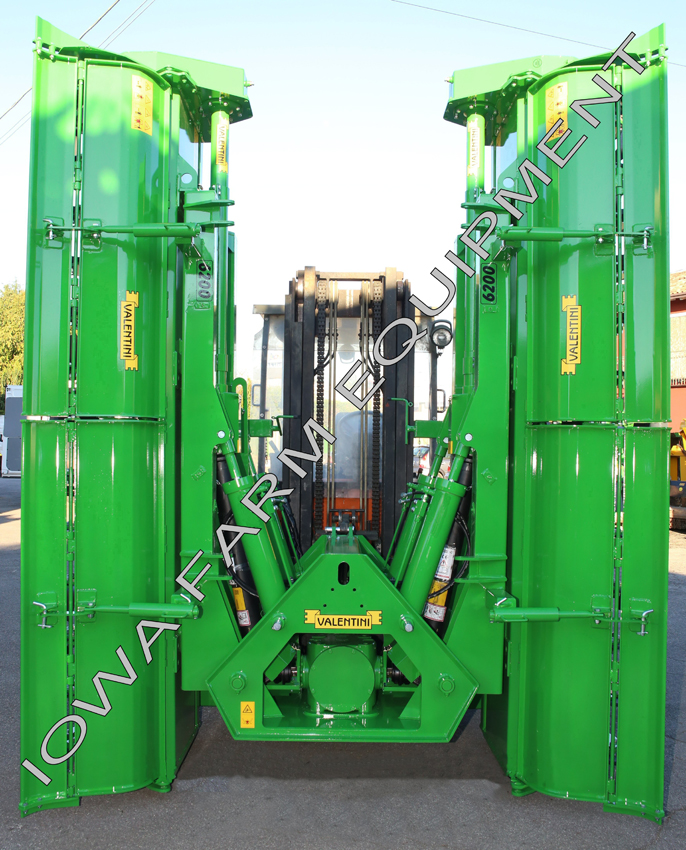

'ER' Series Folding Tiller in Folded Position

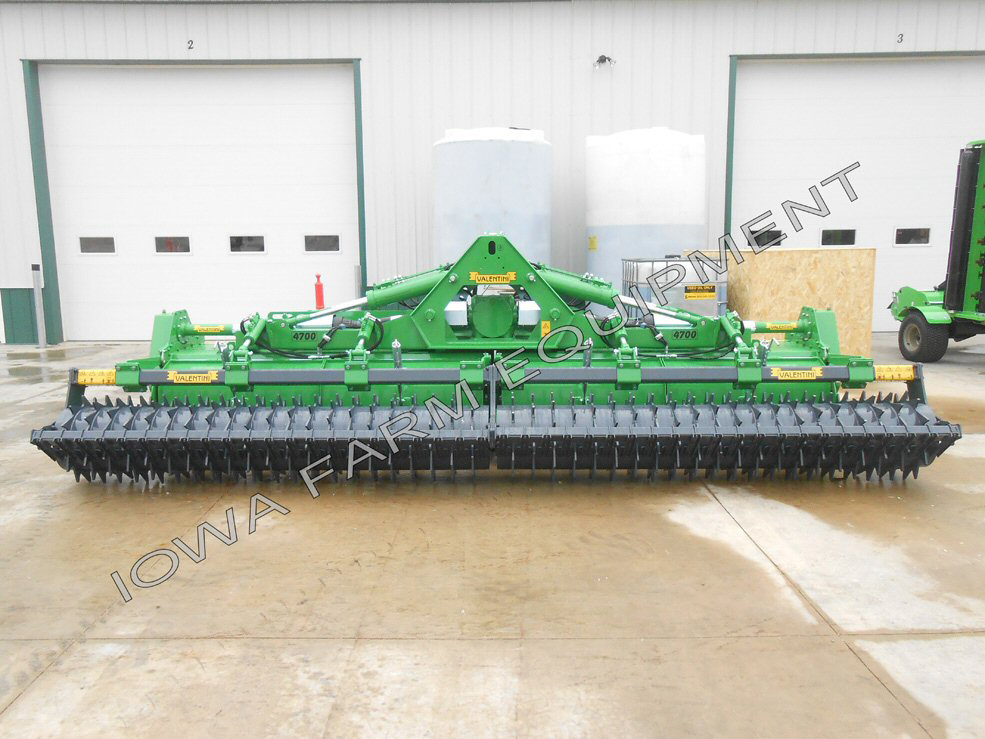

'ER' Series Tiller Shown with Center Ripper & Optional Culti-Packer Roller

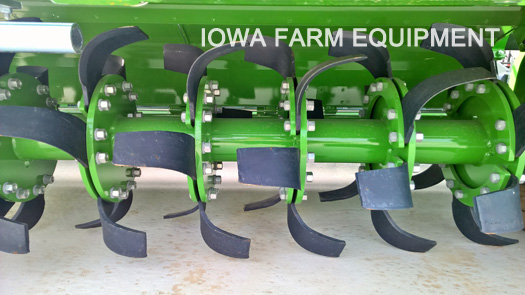

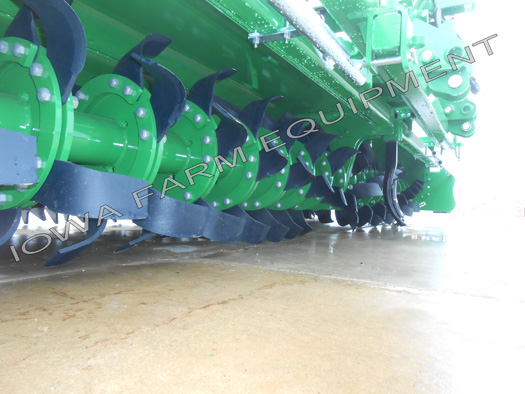

'ER' Series Tiller Rotor Shown with Optional Counter Flange Kit (for Dry Hard Dirt/Clay & Stony Conditions)

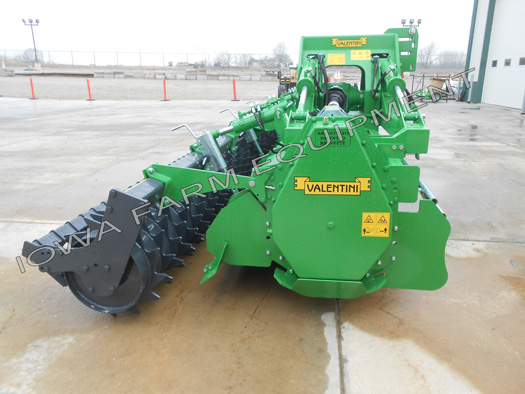

'ER' Series Tiller Shown with Center Ripper & Optional Culti-Packer Roller
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'ER' SERIES ROTARY TILLER SPECIFICATIONS
MODEL ER4200DT* ER4700DT* ER5200DT* ER5700DT* ER6200DT* ER6700DT* ER7200DT* ER7700DT*
Tractor Horsepower (PTO) 180-400HP 200-400HP 220-400HP 240-400HP 260-400HP 280-400HP 300-400HP 320-400HP
PTO Speed 1000 RPM
Working Width 167" 187" 207" 227" 247" 267" 287" 307"
Overall Width 177" 197" 217" 237" 257" 277" 297" 317"
Quantity of Blades 96 108 120 132 144 156 168 180
Working Depth 11"
Rotor Speed 245 RPM's
Blade Tip Speed 306 RPM's
Weight 7,106 lbs. 7,656 lbs. 8,250 lbs. 8,580 lbs. 9,020 lbs. 9,460 lbs. 9,900 lbs. 10,450 lbs.
Weight with Roller 8,272 lbs. 9,086 lbs. 9,746 lbs. 10,120 lbs. 10,780 lbs. 11,352 lbs. 12,078 lbs. 12,562 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'ER' SERIES ROTARY TILLER SPECIFICATIONS
MODEL ER4200DT* ER4700DT* ER5200DT* ER5700DT* ER6200DT* ER6700DT* ER7200DT* ER7700DT*
Tractor Horsepower (PTO) 180-400HP 200-400HP 220-400HP 240-400HP 260-400HP 280-400HP 300-400HP 320-400HP
PTO Speed 1000 RPM
Working Width 167" 187" 207" 227" 247" 267" 287" 307"
Overall Width 177" 197" 217" 237" 257" 277" 297" 317"
Quantity of Blades 96 108 120 132 144 156 168 180
Working Depth 11"
Rotor Speed 245 RPM's
Blade Tip Speed 306 RPM's
Weight 7,106 lbs. 7,656 lbs. 8,250 lbs. 8,580 lbs. 9,020 lbs. 9,460 lbs. 9,900 lbs. 10,450 lbs.
Weight with Roller 8,272 lbs. 9,086 lbs. 9,746 lbs. 10,120 lbs. 10,780 lbs. 11,352 lbs. 12,078 lbs. 12,562 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
