All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!

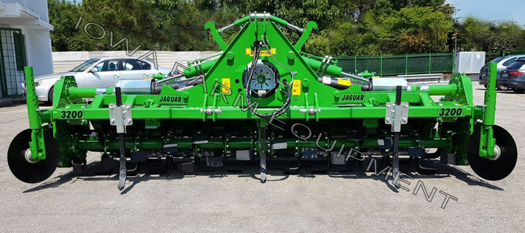

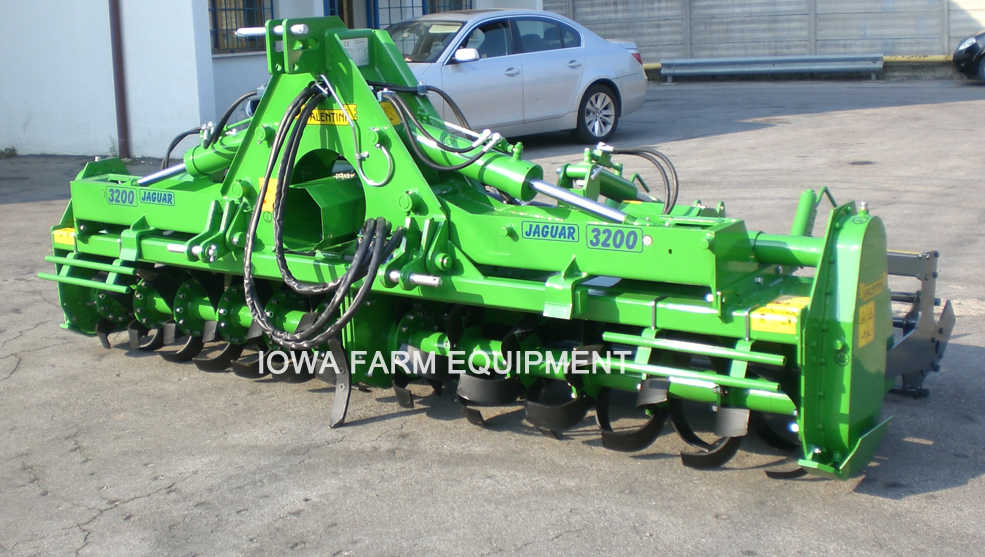

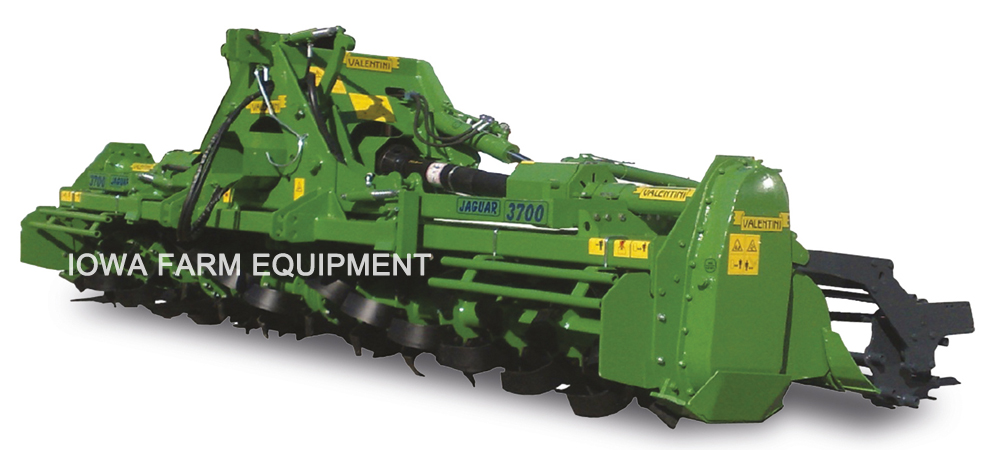

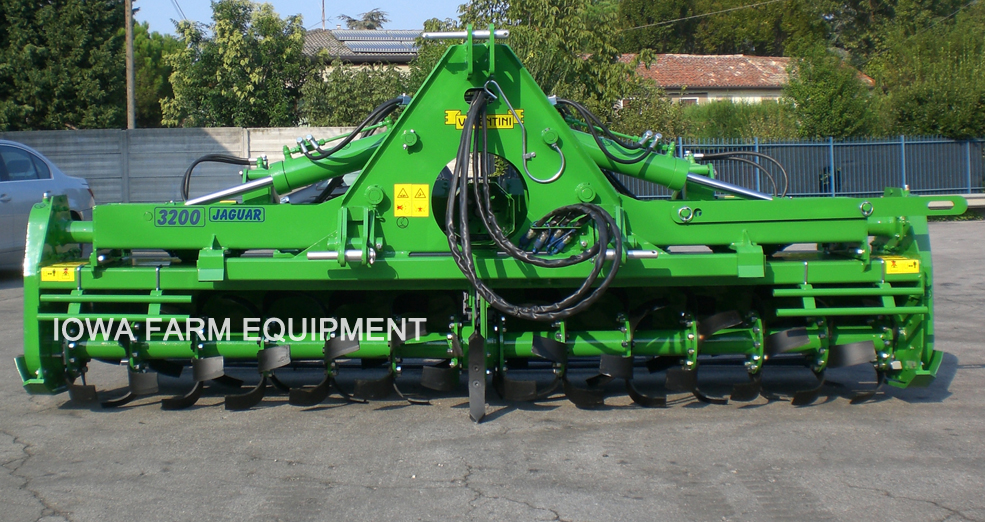

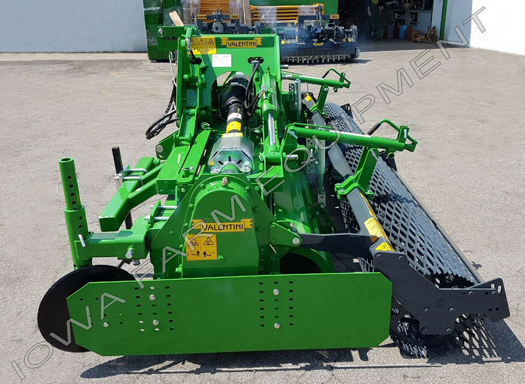

'J' Series Folding Tiller Shown with Optional Cage Roller
FOR 120-180HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'J' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Dual Cylinder Hydraulic Roller Adjustment.
Blade Protecting Counter Flange Kit:
Standard on J3700DT & J4200DT Tillers.
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.
Side PTO Shafts Slip Clutch Protected.
6 Blades Per Flange w/Rotor Counter Flange Kit.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes or Hydraulic Rear Roller for Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
Front & Side Safety Guards for Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller
'J' Series Folding Tiller Shown with Center Ripper Shank
'J' Series Folding Tiller Shown with Center Ripper Shank & Optional Cage Roller
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'J' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
J3200DT*
J3700DT*
J4200DT*
Tractor Horsepower (PTO)
120 - 180HP
120 - 180HP
120 - 180HP
PTO Speed
1000 RPM
Working Width
128"
148"
168"
Overall Width
138"
158"
178"
Quantity of Blades
72
84
96
Rotor Diameter
20"
Working Depth
10"
Rotor Speed
229 RPM's
Blade Tip Speed
289 RPM's
Weight
2,944 lbs.
3,397 lbs.
3,850 lbs.
Weight with Roller
3,566 lbs.
4,116 lbs.
4,664 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'J' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
J3200DT*
J3700DT*
J4200DT*
Tractor Horsepower (PTO)
120 - 180HP
120 - 180HP
120 - 180HP
PTO Speed
1000 RPM
Working Width
128"
148"
168"
Overall Width
138"
158"
178"
Quantity of Blades
72
84
96
Rotor Diameter
20"
Working Depth
10"
Rotor Speed
229 RPM's
Blade Tip Speed
289 RPM's
Weight
2,944 lbs.
3,397 lbs.
3,850 lbs.
Weight with Roller
3,566 lbs.
4,116 lbs.
4,664 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
