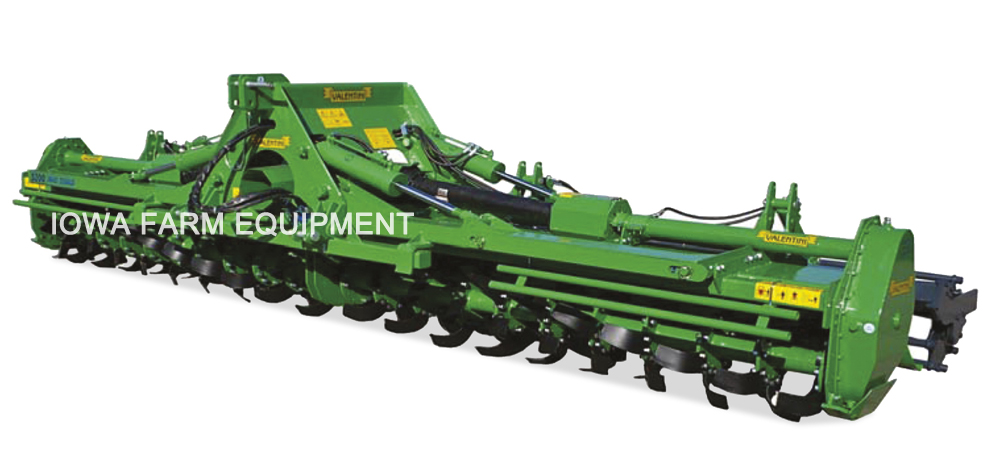

Valentini 'MSQ' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!
'MSQ' Series Folding Tiller Shown with Optional Hyd. Adjusted Cage Roller
FOR 190-300HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'MSQ' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Dual Cylinder Hydraulic Roller Adjustment.
Blade Protecting Counter Flange Kit:
Standard on All Models.
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.
Side PTO Shafts Slip Clutch Protected.
6 Blades per Flange w/Rotor Counter Flange Kit.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes or Hydraulic Rear Roller for Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
Front & Side Safety Guards for Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller

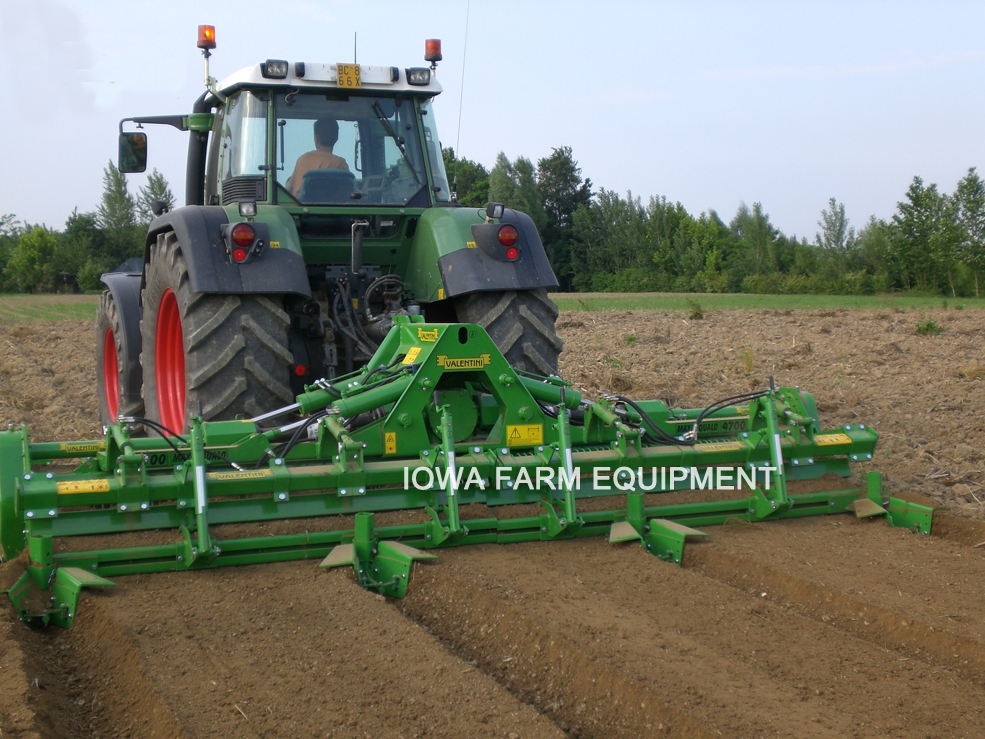

'MSQ' Series Folding Tiller Shown with Optional Hyd. Adjusted Bed Shapers

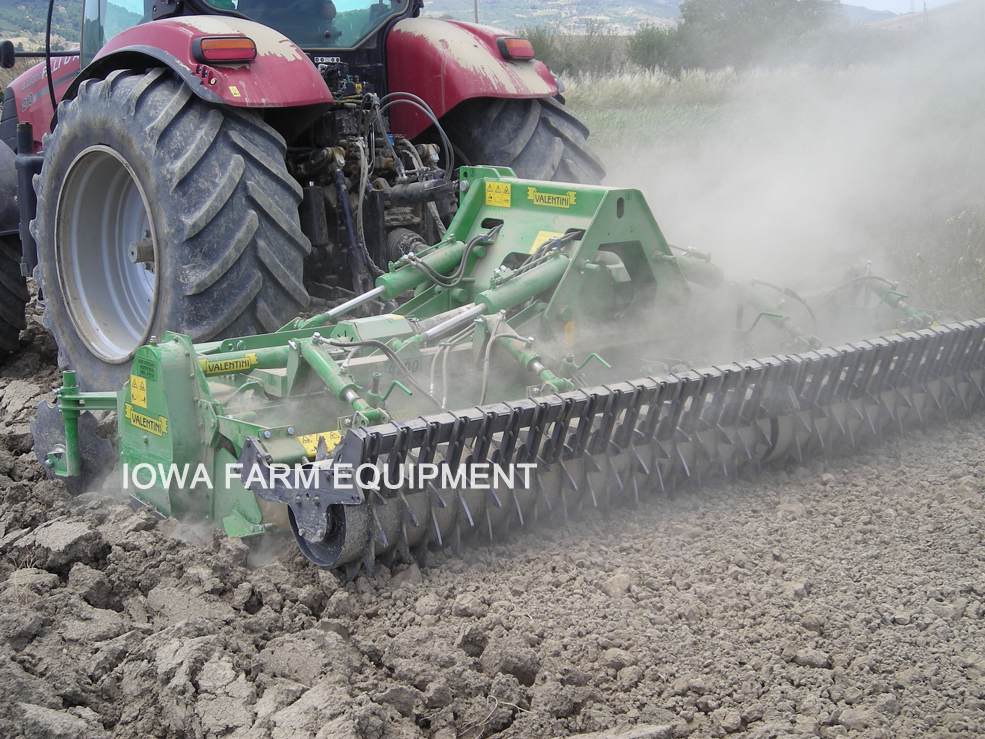

'MSQ Series Folding Tiller with Hydraulically Adjusted Packer Roller
'MSQ' Series Folding Tiller with Hydraulically Adjusted Packer Roller & Front Notched Discs
'MSQ' Series Folding Tiller with Hydraulically Adjusted Packer Roller & Front Notched Discs
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'MSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
MSQ3700DT*
MSQ4200DT*
MSQ4700DT*
MSQ5200DT*
MSQ5700DT*
Tractor Horsepower (PTO)
190 - 300HP
190 - 300HP
190 - 300HP
200 - 300HP
250 - 300HP
PTO Speed
1000 RPM
Working Width
148"
168"
188"
208"
228"
Overall Width
158"
178"
198"
218"
238"
Quantity of Blades
84
96
108
120
132
Working Depth
11"
Rotor Speed
259 RPM's
Blade Tip Speed
324 RPM's
Weight
5,060 lbs.
5,720 lbs.
6,160 lbs.
6,600 lbs.
7,040 lbs.
Weight with Roller
6,578 lbs.
7,128 lbs.
7,810 lbs.
8,096 lbs.
8,470 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'MSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
MSQ3700DT*
MSQ4200DT*
MSQ4700DT*
MSQ5200DT*
MSQ5700DT*
Tractor Horsepower (PTO)
190 - 300HP
190 - 300HP
190 - 300HP
200 - 300HP
250 - 300HP
PTO Speed
1000 RPM
Working Width
148"
168"
188"
208"
228"
Overall Width
158"
178"
198"
218"
238"
Quantity of Blades
84
96
108
120
132
Working Depth
11"
Rotor Speed
259 RPM's
Blade Tip Speed
324 RPM's
Weight
5,060 lbs.
5,720 lbs.
6,160 lbs.
6,600 lbs.
7,040 lbs.
Weight with Roller
6,578 lbs.
7,128 lbs.
7,810 lbs.
8,096 lbs.
8,470 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
