All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!

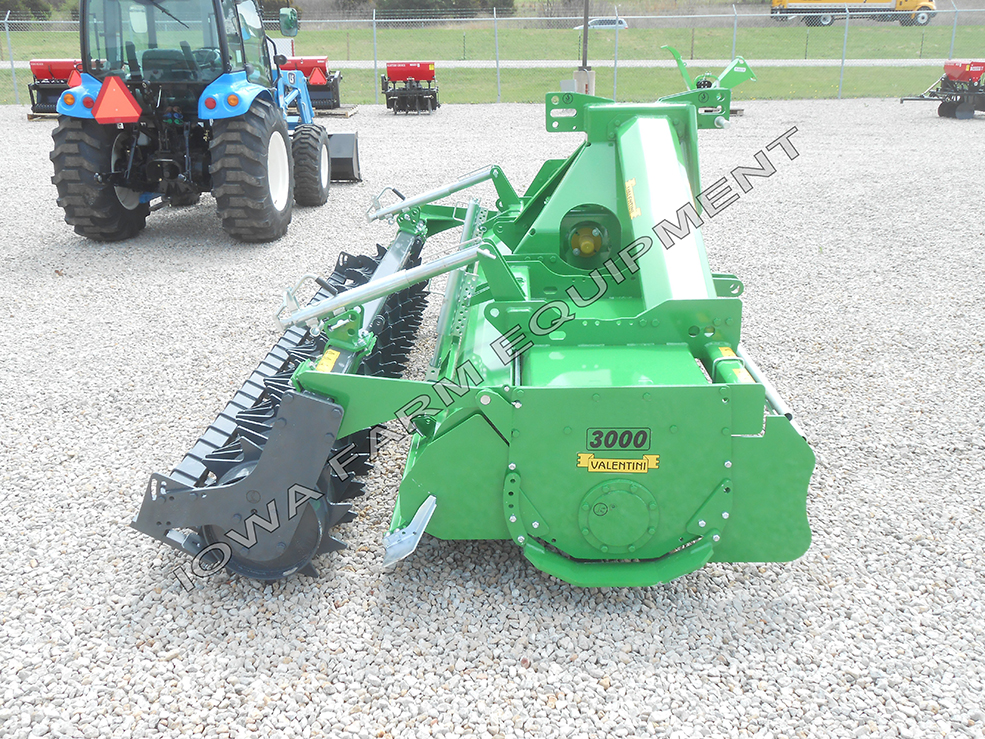

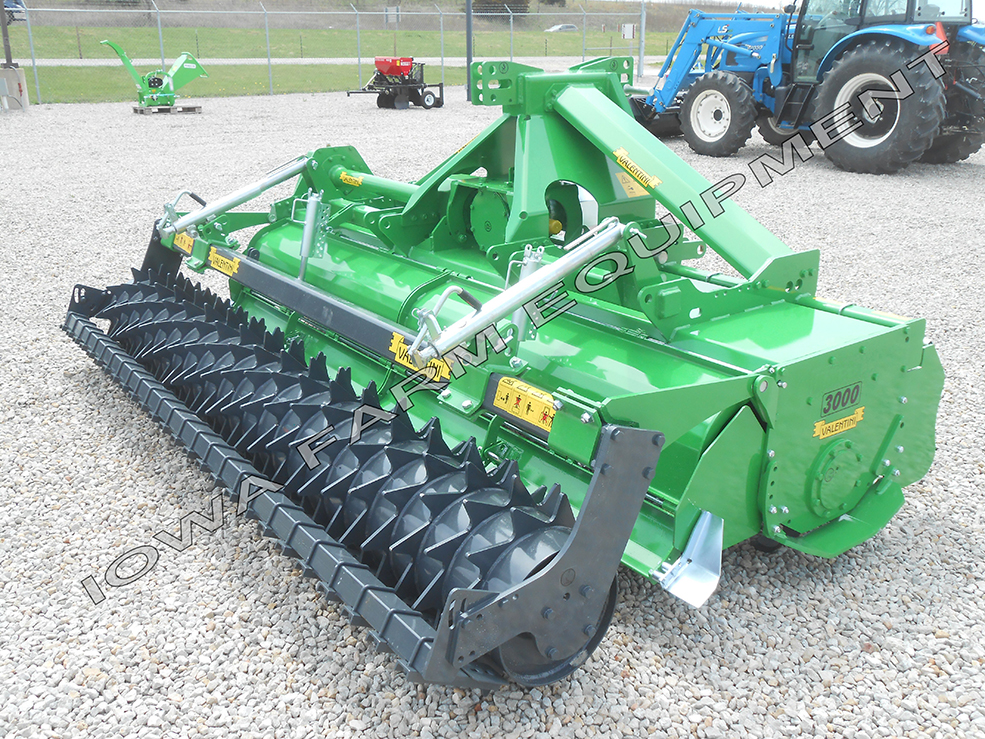

Model P3000 Shown With Hydraulically Adjusted Rear Roller & Poly Liners (for Use in Rice Fields, Other Wet & Muddy Applications)
FOR 150-250HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'P' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Dual Cylinder Hydraulic Roller Adjustment.
Blade Protecting Counter Flange Kit:
Standard on P3500 & P4000DT Tillers.
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.

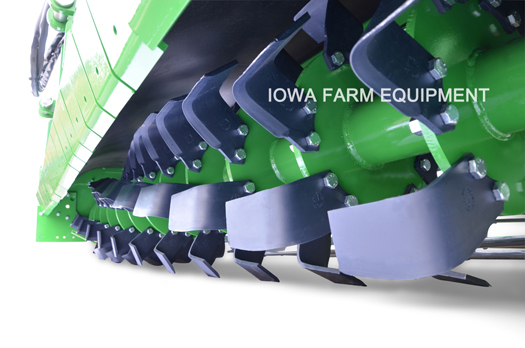

6 Blades per Flange w/Rotor Counter Flange Kit.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes or Hydraulic Rear Roller for Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
Front & Side Safety Guards for Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller

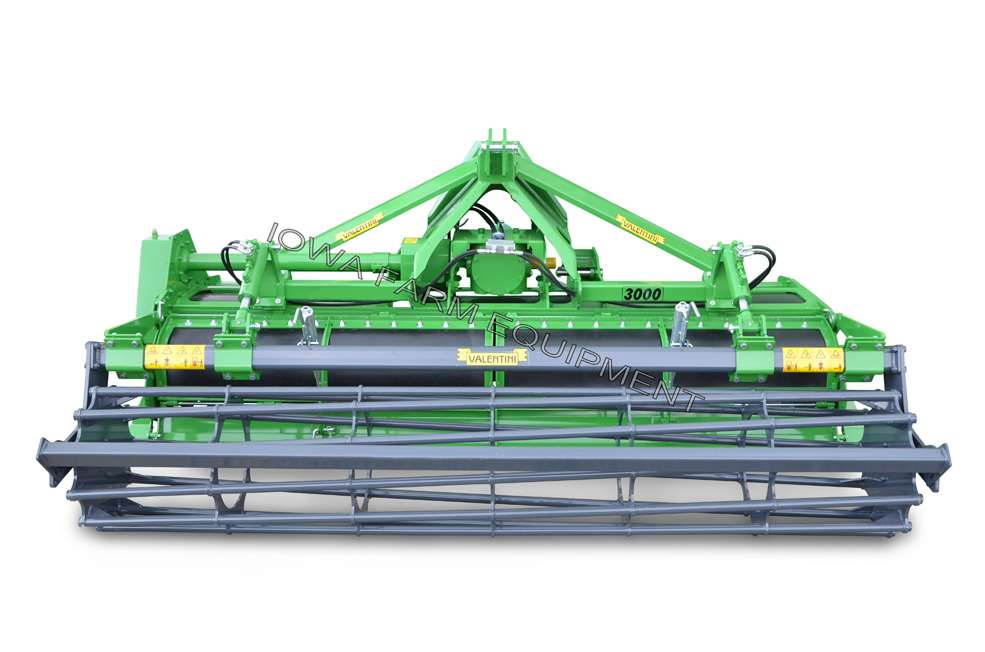

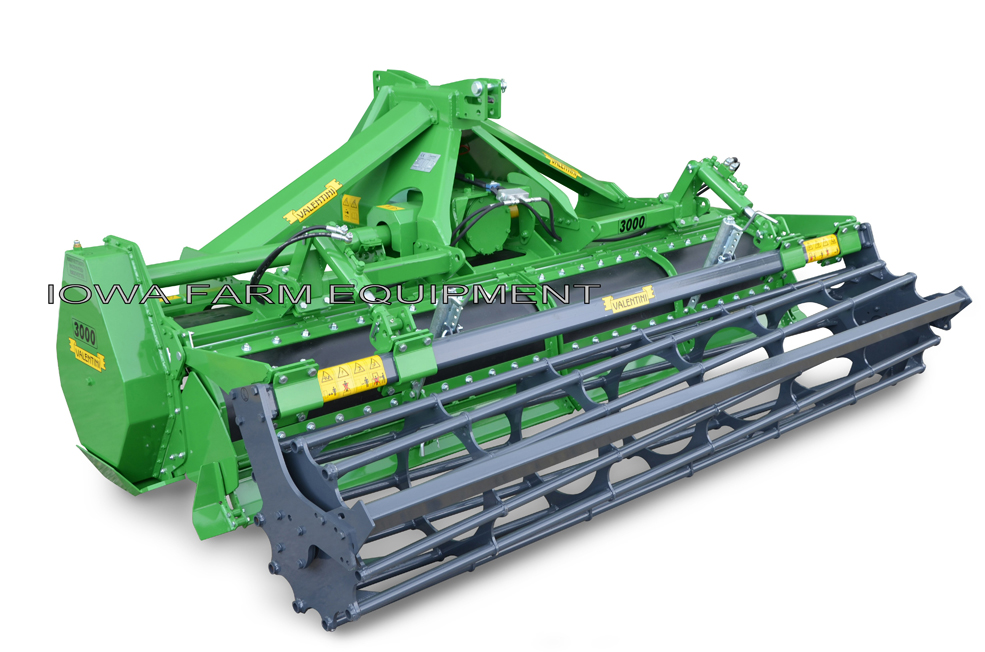

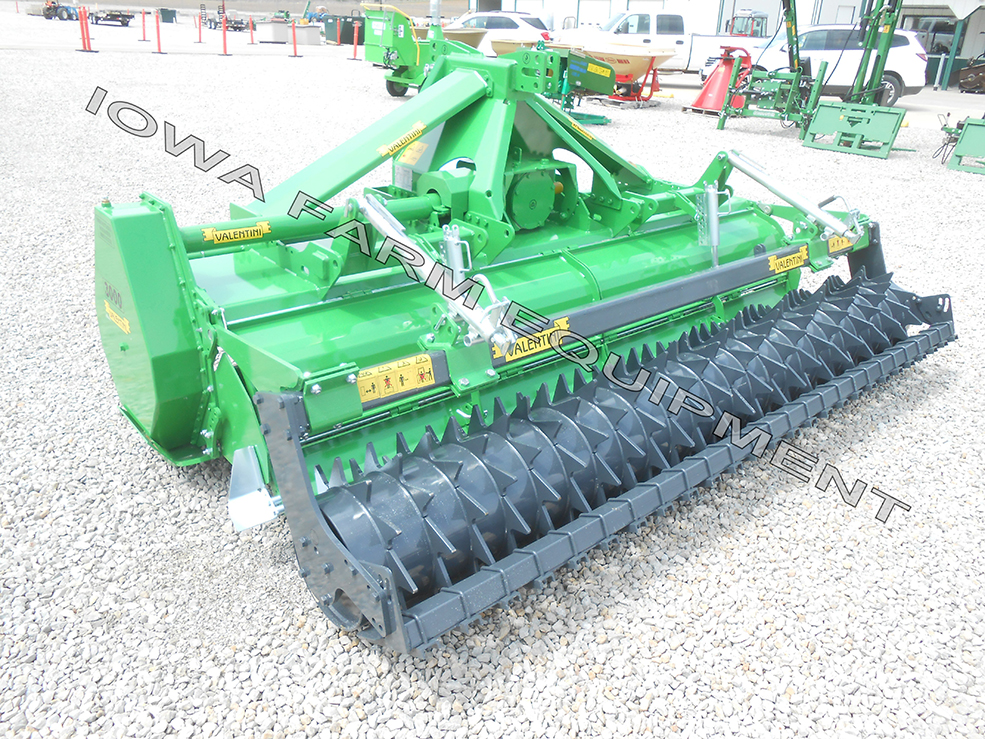

Model P3000 Shown with Optional Cage Roller & Hydraulic Depth Control
Model P3000 Shown With Hydraulically Adjusted Rear Roller & Poly Liners (for Use in Rice Fields, Other Wet & Muddy Applications)
Model P3000 Shown With Hydraulically Adjusted Rear Roller & Poly Liners (for Use in Rice Fields & Other Wet & Muddy Applications)

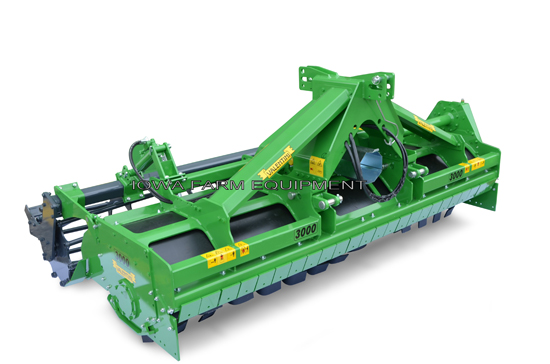

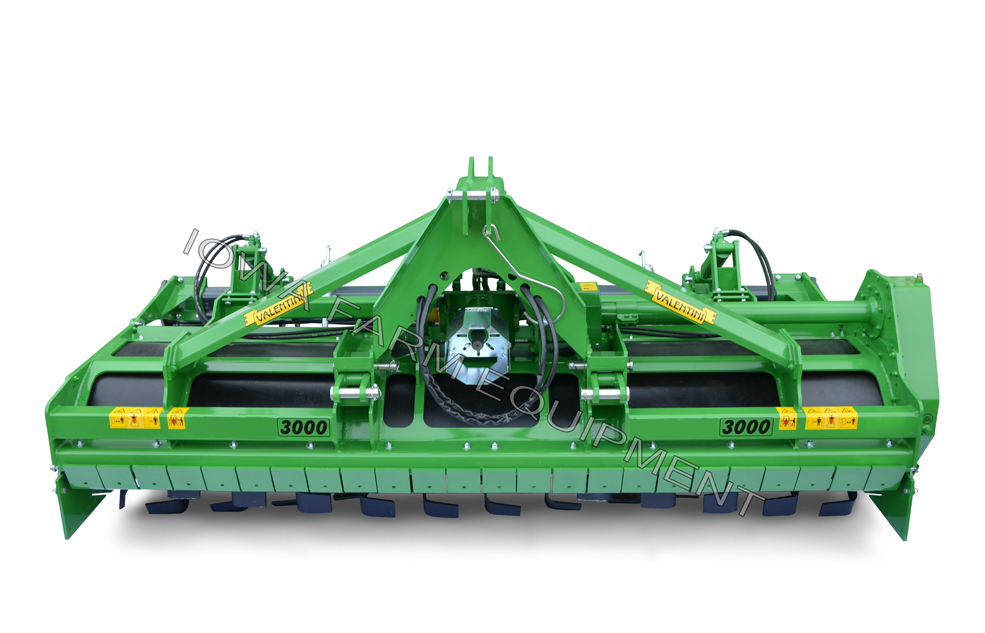

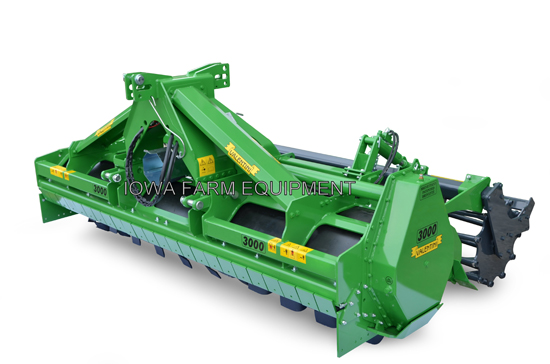

Model P3000 with Manually Adjusted Rear Roller Control
Model P3000 with Manually Adjusted Rear Roller Control
Model P3000 with Manually Adjusted Rear Roller Control
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'P' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
P2500
P2800
P3000
P3300
P3500
P4000DT*
Tractor Horsepower (PTO)
150 - 250HP
180 - 250HP
200 - 250HP
220 - 250HP
230 - 250HP
300 - 350HP
PTO Speed
1000 RPM
Working Width
102"
112"
122"
132"
142"
162"
Overall Width
110"
120"
130"
140"
150"
170"
Quantity of Blades
60
66
72
78
84
96
Rotor Diameter
21.25"
Working Depth
11"
Rotor Speed
245 RPM's
Blade Tip Speed
306 RPM's
Weight
3,155 lbs.
3,456 lbs.
3,760 lbs.
4,063 lbs.
4,367 lbs.
6,895 lbs.
Weight with Roller
4,171 lbs.
4,571 lbs.
4,972 lbs.
5,375 lbs.
5,775 lbs.
8,423 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'P' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
P2500
P2800
P3000
P3300
P3500
P4000DT*
Tractor Horsepower (PTO)
150 - 250HP
180 - 250HP
200 - 250HP
220 - 250HP
230 - 250HP
300 - 350HP
PTO Speed
1000 RPM
Working Width
102"
112"
122"
132"
142"
162"
Overall Width
110"
120"
130"
140"
150"
170"
Quantity of Blades
60
66
72
78
84
96
Rotor Diameter
21.25"
Working Depth
11"
Rotor Speed
245 RPM's
Blade Tip Speed
306 RPM's
Weight
3,155 lbs.
3,456 lbs.
3,760 lbs.
4,063 lbs.
4,367 lbs.
6,895 lbs.
Weight with Roller
4,171 lbs.
4,571 lbs.
4,972 lbs.
5,375 lbs.
5,775 lbs.
8,423 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
