Valentini 'SQ' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath - No Belts, NO Chains
& Double Skinned Body, All For Long, Trouble Free Life!

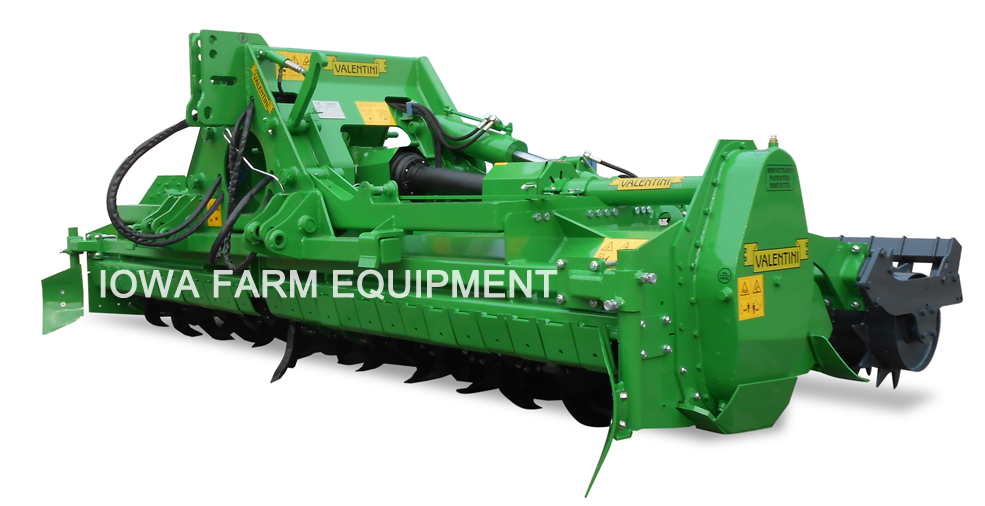

'SQ' Series Folding Tiller Shown with Center Ripper Shank, Optional Plow Shares & Packer Roller

FOR 130-200HP TRACTORS

As with ALL Valentini Rotary Tillers, the 'SQ' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!

STANDARD FEATURES:

Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'SQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL SQ3700DT* SQ4200DT* SQ4700DT*
Tractor Horsepower (PTO) 130 - 200HP 140 - 200HP 160 - 200HP
PTO Speed 1000 RPM
Working Width 148" 168" 188"
Overall Width 158" 178" 198"
Quantity of Blades 84 96 108
Rotor Diameter 21.25"
Working Depth 11"
Rotor Speed 229 RPM's
Blade Tip Speed 289 RPM's
Weight 4,290 lbs. 4,730 lbs. 5,060 lbs.
Weight with Roller 5,214 lbs. 5,676 lbs. 6,270 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'SQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL SQ3700DT* SQ4200DT* SQ4700DT*
Tractor Horsepower (PTO) 130 - 200HP 140 - 200HP 160 - 200HP
PTO Speed 1000 RPM
Working Width 148" 168" 188"
Overall Width 158" 178" 198"
Quantity of Blades 84 96 108
Rotor Diameter 21.25"
Working Depth 11"
Rotor Speed 229 RPM's
Blade Tip Speed 289 RPM's
Weight 4,290 lbs. 4,730 lbs. 5,060 lbs.
Weight with Roller 5,214 lbs. 5,676 lbs. 6,270 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
