Valentini 'SSQ' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!

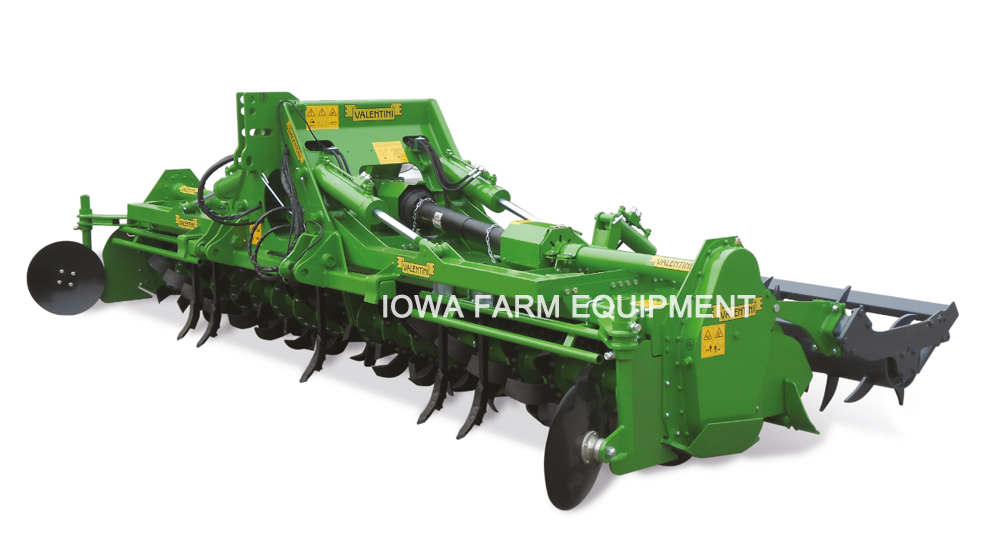

'SSQ' Series Folding Tiller Shown with Center Ripper Shank, Optional Side Discs, Tire Track Eradicator Shanks & Hyd Adjusted Toothed Roller
FOR 170-270HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'SSQ' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Dual Cylinder Hydraulic Roller Adjustment.
Blade Protecting Counter Flange Kit:
Standard on All Models.
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.
Side PTO Shafts Slip Clutch Protected.
6 Blades per Flange w/Rotor Counter Flange Kit.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes or Hydraulic Rear Roller for Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
Front & Side Safety Guards for Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
'SSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
SSQ3700DT*
SSQ4200DT*
SSQ4700DT*
SSQ5200DT*
Tractor Horsepower (PTO)
170 - 270HP
170 - 270HP
190 - 270HP
220 - 270HP
PTO Speed
1000 RPM
Working Width
148"
168"
188"
208"
Overall Width
158"
178"
198"
218"
Quantity of Blades
84
96
108
120
Rotor Diameter
21.25"
Working Depth
11"
Rotor Speed
253 RPM's
Blade Tip Speed
310 RPM's
Weight
4,510 lbs.
4,840 lbs.
5,170 lbs.
5,500 lbs.
Weight with Roller
5,434 lbs.
5,830 lbs.
6,468 lbs.
7,150 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'SSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
SSQ3700DT*
SSQ4200DT*
SSQ4700DT*
SSQ5200DT*
Tractor Horsepower (PTO)
170 - 270HP
170 - 270HP
190 - 270HP
220 - 270HP
PTO Speed
1000 RPM
Working Width
148"
168"
188"
208"
Overall Width
158"
178"
198"
218"
Quantity of Blades
84
96
108
120
Rotor Diameter
21.25"
Working Depth
11"
Rotor Speed
253 RPM's
Blade Tip Speed
310 RPM's
Weight
4,510 lbs.
4,840 lbs.
5,170 lbs.
5,500 lbs.
Weight with Roller
5,434 lbs.
5,830 lbs.
6,468 lbs.
7,150 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
